Napco Security Systems

Magnum Alert Panel Tips

Napco security systems have been protecting homes and businesses for more than 35 years. They are made by Napco Security Technologies, a leading manufacturer of security products ranging from intrusion and fire protection to video and access control.


The company now offers many cutting edge, high tech security products, but it has its roots in much simpler technology.





Many people may know the Napco alarm name from the Magnum Alert series of alarm panels. Although they're now long out-of-production, these were some of the most popular systems in the 1980’s, during my early days of installing alarms.


If you happen to have one of these old systems, this page is for you. I’ll give you some basics on the different systems, some tips to help you keep an old system running, and how to know when you should start thinking of replacing your system.



Napco Security Magnum Alert Systems


The Napco Magnum Alert line are microprocessor-based residential burglary and fire panels. They all use removable PROM chips (Programmable Read Only Memory) to hold the basic programming information. They also need 10-conductor cable to run the keypads!

The major models are:

Napco Magnum Alert-800 (6-zones)

Napco Magnum Alert-825 (6-zones)

Napco Magnum Alert-850 (8-zones)

Napco Magnum Alert-900 (12-zones)


By today’s standards, a hardwired security panel with only 6 zones and no expansion capability seems primitive.


However, for its time, the Magnum Alert panels were a step up from the earlier 2-zone systems that came before them.


I’ll wait here while you read that sentence again.


That’s right, I said 2 zones!



It seems hard to believe now, but the earliest panels I installed only had one delay zone and one instant zone. This made troubleshooting a bad door or window switch quite a challenge, especially on a larger house.


So, you can understand what a luxury it was for me to have 4 zones to play with on the MA 800 and MA 825. Although they are 6-zone panels, they actually had only 4 zones available for perimeter protection. The other two were typically dedicated to “Panic” and “Low Battery” functions.


Typical zoning for these Napco alarm systems was often as follows:


Zone 1        Front & garage doors

Zone 2        Front of house

Zone 3        Back of house

Zone 4        Master bedroom



For a large residence, this still didn’t give very good zone breakdown, but it sure beat only two zones!


Napco Security Systems - Magnum Alert 825HS Wiring Diagram

Keeping Napco Security Magnum Alert Systems Running


If you happen to have an old MA panel that still works, congratulations! If your Magnum Alert system is having problems, you may still be able to keep it going for a while longer. Here are some of the most common problems, along with the best solutions I know of.

Napco Keypad Problems


The Napco security systems keypads for the MA systems have a tendency to wear out after several years, specifically the buttons. This problem is accelerated for keypads installed outside or in a garage, where heat can cause them to fail sooner.

The quick and cheap solutions:


If you have more than one keypad, you can swap the bad keypad with another one that is working.


If you only have a single keypad installed, you can re-program the code to use different digits than the one(s) that have failed.


Of course, both of these options will only work for so long, and in fact may have already been done by a previous homeowner.


The not-so-quick, not-so-cheap solution:


Buy a replacement keypad kit at Amazon.com or any of several alarm suppliers online. There are two versions: The Napco security part numbers are RPKIT-3 and RPKIT-9.



  • The RPKIT-3 has 3 LED’s and is for the RP-1003P keypad, used on the MA800 & 825 panels.

  • The RPKIT-9 has 4 LED’s and is for the RP-1009 keypad used on the MA850 & MA 900 panels.


These kits contain the “guts” of the keypad, including the buttons. You simply remove a screw and unplug the ribbon cable, swap out the old part, and substitute the new one.


UPDATE: February 2020

At this point, enough time has passed that most online alarm product distributors no longer have any RPKIT-3's in stock, and there won't be any more coming.

If you have an older Napco system in need of one of these keypads, I suggest looking for a replacement system instead. The time and money spent trying to source parts and refurbish a system as old as this would be better spent on a newer system.

PROM Programming Issues


If you ever want to change the zone programming, fallback code, or reporting information for your Napco home security system, you’ll need to program a new PROM for your system. You can download free alarm programming manuals through the link at the end of this page.


The various PROM chips for each model are available, as is the Pro-410M programmer needed to “burn” the chips. The chips run about $30 each, and the programmer costs around $100.

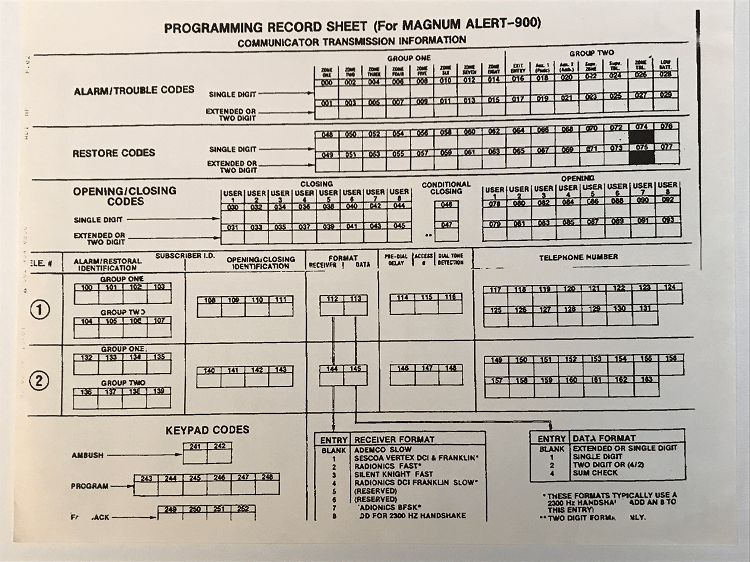

Napco MA900 Program Sheet


PROM’s cannot be erased like "electrically erasable" PROM's, or  EEPROM’s. This means that once data is burned into a PROM, it’s there forever. If you make any programming mistakes, you’ll quickly start running into serious money.


Come to think of it, if you buy the programmer and a couple of PROM chips, you’re already into serious money!


Very few alarm hobbyists (and even fewer homeowners) are brave enough to fool with programming these old Napco security systems.


If you require PROM program changes, the easiest solution is to contact an alarm dealer. They can either perform the programming changes you need, or more likely recommend a newer system.


Battery Changes


Like all alarm systems, older Napco security systems will require a battery replacement about every 3-5 years.


These panels can all use the standard 12-volt, sealed lead-acid (SLA) rechargeable alarm batteries. Either the 4AH (Amp-Hour) or 7AH units will fit easily in the alarm enclosure.


If you’re in an area subject to frequent power outages, it's a good idea to use the larger capacity 7AH unit.


For help, see DIY Alarm System Battery Replacement.


Replacing Older Napco Security Systems


As these older systems accumulate years of wear and tear, you'll reach a point when it's just not worth putting any more money into them.

Here are some things to consider when deciding to repair or replace a system:

  • Keypad replacement kits like the ones mentioned above will likely be discontinued in time, as more and more Napco owners upgrade to newer systems


  • A new system can easily be had these days for as little as $99, or even free in some cases, provided you go with monitoring. This makes spending money on a very old system much less cost effective than it used to be

  • If you own a smartphone or other web-enabled device, consider how handy it would be to use it to remotely arm and disarm your system. Many newer systems are designed to be smartphone-compatible from the ground up. If you happen to have (or plan to have) cameras, many systems allow remote live viewing and playback on smart devices

If you decide your older Napco security system is worn out, and you’re not willing to put any more money into it, it’s time to replace it.


The good news?
You may be able to re-use most of the hardwired door and window contacts, motion detectors, and sirens from the old Napco security system with a new panel and keypads.


Hardwired devices
are fairly generic, and will work with almost any new panel designed to use hardwired contacts. Depending on the age and condition of the devices, you may have to replace a few of them. But, the wiring is already in place, which is often the most difficult part of installing a hardwired system.


Helpful Links:

To find a Napco alarm systems user manual, alarm installation manual, or programming guide, check out my alarm system manual sources page.


To see some of the latest Napco Security products, visit the Napco Security Technologies website.



To find out how much it would cost to replace your old Napco security system, just fill out the form below. You'll receive estimates by email, with no obligation to buy anything.
